New model, more images coming soon.
Model: SRX-9
More power, more reserve, more days on.
8 kW
Rated Power
16.97 kW
Instantaneous
40.96 kWh
Battery Capacity
3,200 lbs
Curb Weight

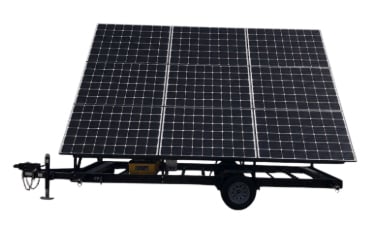

About the SRX-9
Step Up.
Power Up.
The SRX-9 is where the series gets serious about run time. If the SRX-6 is the right machine for a wide range of work, the SRX-9 is the right machine for the work that needs to go further — extended deployments, multi-shift operations, remote sites where resupply isn’t an option, and applications where overnight autonomy is a requirement.
Nine LG Neon panels and a 40.96 kWh LiFePO4 battery — double the storage of the SRX-6 — changes the math on what’s possible. Up to 23 kWh harvested on a peak day, averaging 18 kWh under normal sunny conditions. That’s enough reserve to carry through cloudy days, early mornings, and late nights without touching the expensive backup fuel. For operators running critical loads, that buffer is the difference between a controlled operation and a power shortage scramble.
The SRX-9 steps up to the Outback Power Radian inverter — 8 kW continuous, 16.97 kW instantaneous at 120/240VAC. That means larger compressors, HVAC equipment, heavy lighting systems, and multiple simultaneous high-draw loads that the SRX-6 simply wasn’t rated for. The 50-amp outlet configuration reflects that as well.
The same self-heated LiFePO4 battery chemistry that powers the SRX-6 is at work here — engineered to operate from -40°C to +60°C, rated for 6,000 cycles at 80% depth of discharge. It doesn’t matter if the site is a pipeline pad in North Dakota in February or a solar farm in the Mojave in August. The SRX-9 is built to perform in conditions where other equipment simply can’t or won’t cut it.
Starlink Mini remote monitoring and GPS tracking come standard. Your operations team has full visibility into power levels, solar harvest, and unit location — from anywhere, without a site visit. When conditions push beyond what solar can deliver, the optional Honda EU7000iS backup generator in a lockable, theft-resistant cage with auto-start keeps the load running without interruption.
De-trailerize in under 15 minutes when the job calls for a ground-level deployment. Same open-chassis platform, same bolt-together frame, same 36″ outriggers and swing-down jacks that have made Mobile Solar’s trailers the trusted choice for operators who got tired of wasting time on low end power alternatives. Assembled in the USA. Backed by a 5-year platform warranty.
What’s Included
SRX-9 Standard Features
Cloud-Connected Remote Monitoring + GPS
(Starlink Mini — included standard)
Fixed-Pitch, No-Moving-Parts Solar Array
Self-Heated LiFePO4 Battery — operates from -40°C to +60°C
Adjustable-Height Ball Coupler or Pintle Hitch
40.96 kWh Battery Capacity — double the SRX-6
Telescopic / Removable Tongue
6,000-Cycle Battery Life at 80% Depth of Discharge
De-Trailerizable in Under 15 Minutes
Outback Power Radian Inverter — 8 kW rated, 16.97 kW instantaneous
Made in the USA | 5-Year Platform Warranty
120/240VAC Output — supports higher-draw equipment
36″ Outriggers + Ground-Anchor Tie-Down Points
Open-Chassis Frame — low wind profile, minimal cosmetic maintenance
Drop-Down / Slide-Out Generator Service Platform
Available Options
Technical Data
SRX-9 Full Specifications
Power Output
Rated Power
8 kW
Instantaneous Power
16.97 kW
Output Voltage
120/240VAC 60Hz, Single Phase
Rated Amps
33.3A
Instantaneous Amps
70.7A
Inverter
Outback Power Radian
Inverter Warranty
5 Years
Solar Harvest
Peak Day Harvest
23 kWh/day
Average Sunny Day
18 kWh/day
Panel Quantity & Wattage
9 × 375W
Total Array Watts
3,375W
Panel Type
LG Neon Mono-Crystalline
Aux Solar Input
Optional (+5 kW)
Panel Warranty
25-Year Limited
Energy Storage
Battery Chemistry
LiFePO4
Energy Capacity
40.96 kWh
Amp-Hour Capacity
800AH @ 51.2VDC
Usable Capacity
100%
Cycle Life (80% DoD)
6,000 cycles
Operating Range
-40°C to +60°C
Certified To
UN 38.3, UL 1642, CE
Battery Warranty
5 Years
Trailer Platform
Nominal Dimensions
6′ × 16′
Towing Dimensions
8’6″ W × 20′ L × 9′ H
Curb Weight
3,200 lbs
GVWR
5,000 lbs
Outlets (Standard)
1 × 20A + 1 × 50A
Shore Power Inlet
50A — Lev CS6375
Manufacturer
Mobile Solar
Platform Warranty
5 Years
* Specifications subject to change. Contact us to confirm current configuration availability.
