Model: SRX-6
Nimble, capable, built tough, towable by any half-ton, and ready to work anywhere.
3.6 kW
Rated Power
6 kW
Instantaneous
20.48 kWh
Battery Capacity
2,520 lbs
Curb Weight

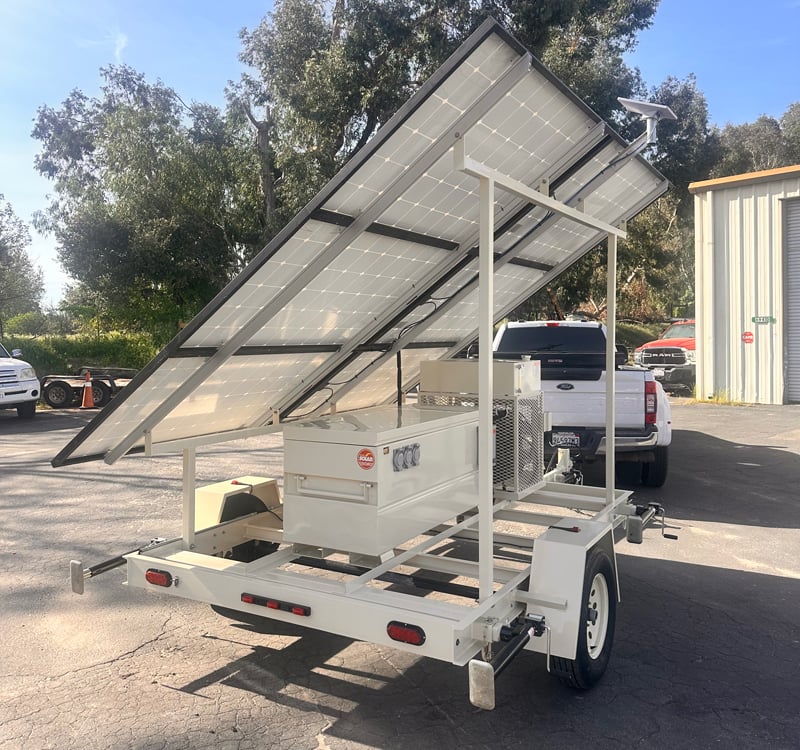

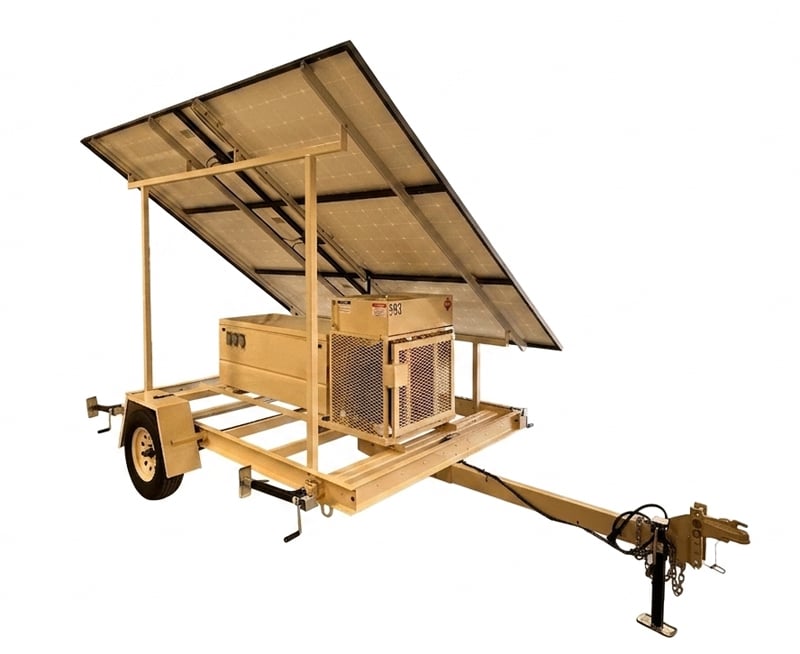

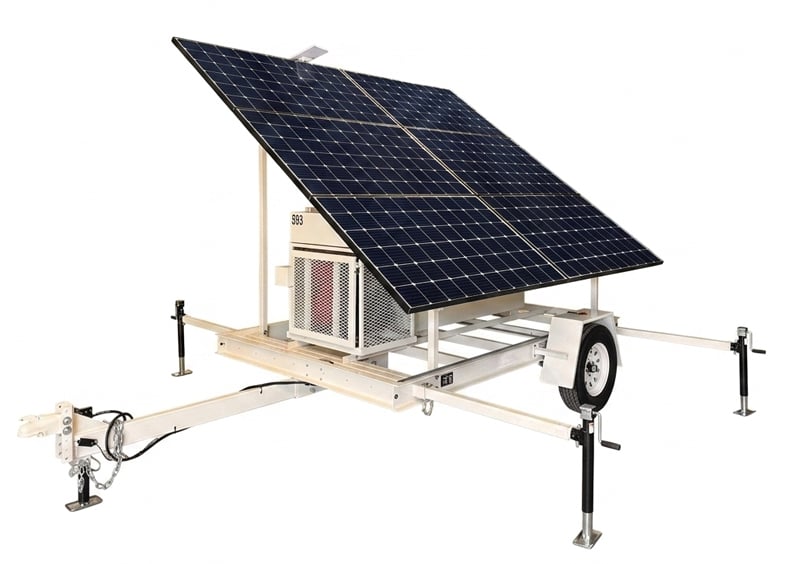

About the SRX-6
Small Footprint.
Serious Power.

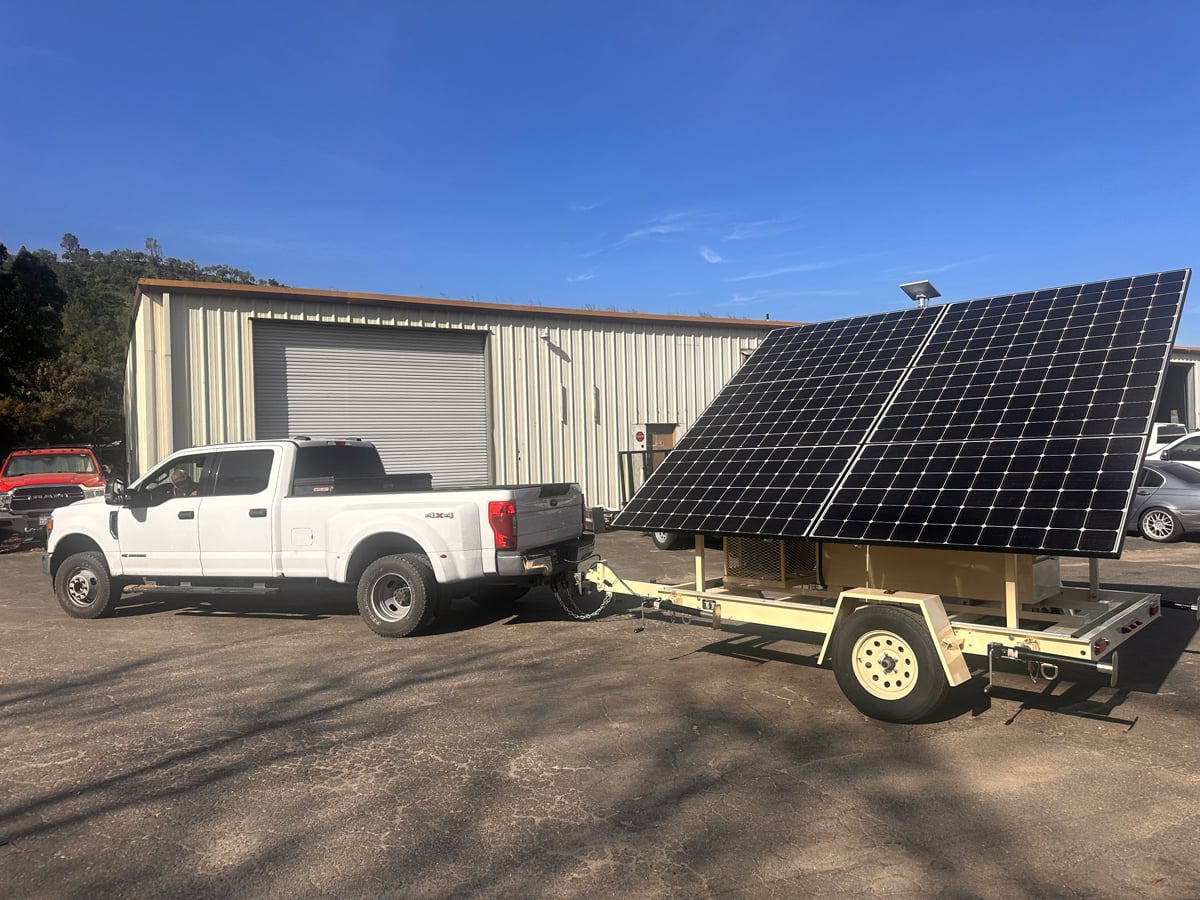

At 2,520 lbs with a 3,500 lb GVWR, any standard half-ton truck or SUV can move it. That’s not an accident — it’s a design decision. On a real jobsite, the tow vehicle is whatever’s available that morning, and the generator needs to fit that reality. Hitch it up, drive to the site, deploy the outriggers, and plug in. The SRX-6 takes it from there.
The SRX-6 was built for the people who actually work in the field — the ones running compressors at 6am, powering remote equipment for weeks at a stretch, or keeping a construction crew lit up on a site where the nearest utility pole is miles away.
The fixed 6-panel LG Neon array harvests up to 15 kWh on a peak day and feeds a 20.48 kWh self-heated LiFePO4 battery that operates from -40°C to +60°C — because cold-weather battery failure isn’t a something that should slow you down.
Starlink Mini remote monitoring and GPS tracking come standard — not as an upgrade, not as an add-on, standard. Your team knows what the unit is doing, power being used or harvested, and other details without needing to be on site. This and other features is what helps set our power systems apart from the rest.
If you need to pull the wheels and set it directly on the ground – no problem. De-trailerize in under 15 minutes. The SRX-6 is Mobile Solar’s entry point into the SRX-Series. It’s the right amount of machine for a wide range of serious work, assembled in the USA and backed by a 5-year platform warranty from the team that builds one of these every week.
What’s Included
SRX-6 Standard Features
Cloud-Connected Remote Monitoring + GPS
(Starlink Mini — included standard)
Fixed-Pitch, No-Moving-Parts Solar Array
Self-Heated LiFePO4 Battery — operates from -40°C to +60°C
Adjustable-Height Ball Coupler or Pintle Hitch
6,000-Cycle Battery Life at 80% Depth of Discharge
Telescopic / Removable Tongue
Open-Chassis Frame — low wind profile, minimal cosmetic maintenance
De-Trailerizable in Under 15 Minutes
36″ Outriggers + Ground-Anchor Tie-Down Points
Made in the USA | 5-Year Platform Warranty
Drop-Down / Slide-Out Generator Service Platform
Outback Power FXR Inverter — 3.6 kW rated
Available Options
Technical Data
Full Specifications
Power Output
Rated Power
3.6 kW
Instantaneous Power
6 kW
Output Voltage
120VAC 60Hz, Single Phase
Rated Amps
29.2A
Instantaneous Amps
50A
Inverter
Outback Power FXR
Inverter Warranty
5 Years
Solar Harvest
Peak Day Harvest
15 kWh/day
Average Sunny Day
12 kWh/day
Panel Quantity & Wattage
6 × 375W
Total Array Watts
2,250W
Panel Type
LG Neon Mono-Crystalline
Aux Solar Input
Optional (+5 kW)
Panel Warranty
25-Year Limited
Energy Storage
Battery Chemistry
LiFePO4
Energy Capacity
20.48 kWh
Amp-Hour Capacity
400AH @ 51.2VDC
Usable Capacity
100%
Cycle Life (80% DoD)
6,000 cycles
Operating Range
-40°C to +60°C
Certified To
UN 38.3, UL 1642, CE
Battery Warranty
5 Years
Trailer Platform
Nominal Dimensions
6′ × 10′
Towing Dimensions
8’6″ W × 14’5″ L × 9′ H
Curb Weight
2,520 lbs
GVWR
3,500 lbs
Outlets (Standard)
1 × 20A + 1 × 30A (120V)
Shore Power Inlet
30A 120V — L5-30
Manufacturer
Mobile Solar
Platform Warranty
5 Years
* Specifications subject to change. Contact us to confirm current configuration availability.
SRX6 Solar Generators
Light & camera towers, backup generators, cellular data and more options are available.
Engineered for high performance
Industry leading components and custom design.
Deploy & Adjust Solar Panels
Push button deployment for towing or operation.
Optional Gas/Diesel Backup Integration
For added power or redundancy.
Lockable & Weatherproof with Storage
Built to work in harsh conditions & climates.
