Newer Model. More images coming soon.
Model: SRX-12
Thirty kilowatt-hours of daily harvest potential — built for the job that runs all day and night.
8 kW
Rated Power
16.97 kW
Instantaneous
12 Panels
Solar Array
3,800 lbs
Curb Weight
About the SRX-12
Twelve Panels.
Zero Compromise.
Where the SRX-9 doubles the SRX-6’s storage, the SRX-12 doubles its solar harvest. That’s the distinction that matters for multi-shift operations, large demand deployments, and sites running sustained high-draw loads around the clock. More panels mean more energy in the bank at the end of every sunny day — and more days between any backup generator runtime.
The SRX-12 is built for operations that don’t negotiate with the weather. Twelve LG Neon panels, a 40.96 kWh LiFePO4 battery, and an Outback Power Radian inverter combine to deliver the kind of daily solar harvest — up to 30 kWh on a peak day, averaging 24 kWh under normal sunny conditions.
The outlet configuration on the SRX-12 is: 2 × 20A, 1 × 30A, and 2 × 50A receptacles, plus main lug in and out bussing for direct panel integration. At 120/240VAC, it supports the kind of equipment mix — large compressors, HVAC systems, high-wattage lighting arrays, communications infrastructure — that a single 50A outlet can’t handle alone.

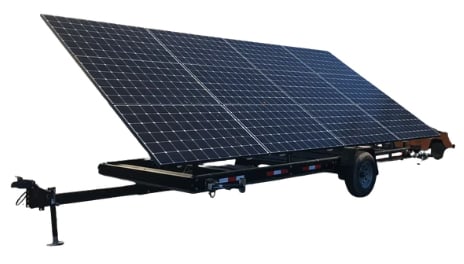

The platform is the same proven open-chassis design that runs through the entire SRX Series — bolt-together frame, heavy-duty fenders, 36″ outriggers with swing-down jacks, multiple ground-anchor tie-down points. At 3,800 lbs, a three-quarter-ton or one-ton truck is the right tow vehicle. It’s still de-trailerizable in under 15 minutes when the site calls for a ground-level installation.
The self-heated LiFePO4 battery bank operates from -40°C to +60°C and is rated for 6,000 cycles at 80% depth of discharge — certified to UN 38.3. Starlink Mini remote monitoring and GPS tracking come standard. Remote access means your team knows the state of the unit without driving to the site. When extended run time is needed beyond what solar can deliver, the optional Honda EU7000iS with 30-gallon auxiliary tank and auto-start handles the gap cleanly.
The SRX-12 is the unit for operators who have outgrown the SRX-9 and need more harvest without stepping up to the full footprint of the SRX-15. It’s a precision fit for a specific kind of demanding work — and Mobile Solar built it to perform at that level every single day. Assembled in the USA. Backed by a 5-year platform warranty.
What’s Included
SRX-12 Standard Features
Cloud-Connected Remote Monitoring + GPS
(Starlink Mini — included standard)
Fixed-Pitch, No-Moving-Parts Solar Array
Self-Heated LiFePO4 Battery — operates from -40°C to +60°C
Adjustable-Height Ball Coupler or Pintle Hitch
40.96 kWh Battery Capacity — sustained overnight and low-sun-day operations
Telescopic / Removable Tongue
6,000-Cycle Battery Life at 80% Depth of Discharge
De-Trailerizable in Under 15 Minutes
Outback Power Radian Inverter — 8 kW rated, 16.97 kW instantaneous
Made in the USA | 5-Year Platform Warranty
2 × 20A + 1 × 30A + 2 × 50A Outlets — multi-load configuration
36″ Outriggers + Ground-Anchor Tie-Down Points
Main Lug In & Out Bussing
Open-Chassis Frame — low wind profile, minimal cosmetic maintenance
Drop-Down / Slide-Out Generator Service Platform
Available Options

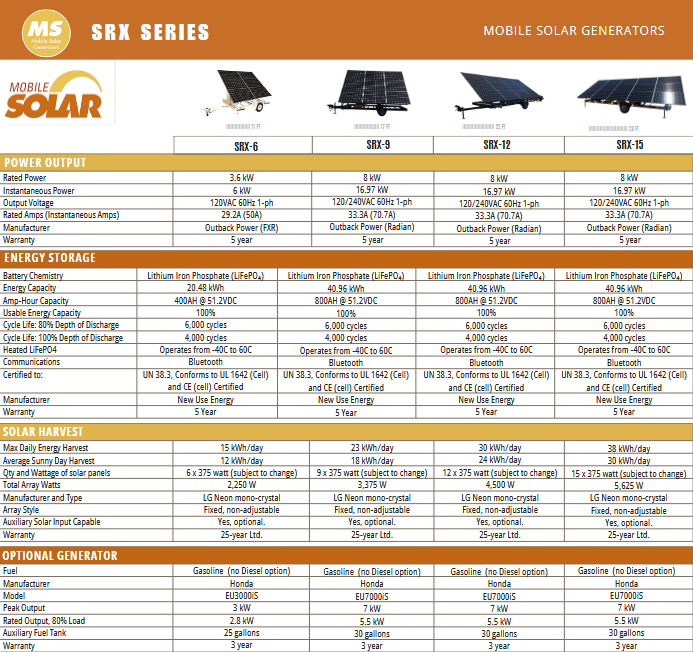

Technical Data
SRX-12 Full Specifications
Power Output
Rated Power
8 kW
Instantaneous Power
16.97 kW
Output Voltage
120/240VAC 60Hz, Single Phase
Rated Amps
33.3A
Instantaneous Amps
70.7A
Inverter
Outback Power Radian
Inverter Warranty
5 Years
Solar Harvest
Peak Day Harvest
30 kWh/day
Average Sunny Day
24 kWh/day
Panel Quantity & Wattage
12 × 375W
Total Array Watts
4,500W
Panel Type
LG Neon Mono-Crystalline
Aux Solar Input
Optional (+5 kW)
Panel Warranty
25-Year Limited
Energy Storage
Battery Chemistry
LiFePO4
Energy Capacity
40.96 kWh
Amp-Hour Capacity
800AH @ 51.2VDC
Usable Capacity
100%
Cycle Life (80% DoD)
6,000 cycles
Operating Range
-40°C to +60°C
Certified To
UN 38.3, UL 1642, CE
Battery Warranty
5 Years
Trailer Platform
Nominal Dimensions
6′ × 23′
Towing Dimensions
8’6″ W × 25’6″ L × 9′ H
Curb Weight
3,800 lbs
GVWR
5,000 lbs
Outlets (Standard)
2 × 20A + 1 × 30A + 2 × 50A
Shore Power Inlet
50A — Lev CS6375
Main Lug Bussing
1 × Main In + 1 × Main Out
Manufacturer
Mobile Solar
Platform Warranty
5 Years
* Specifications subject to change. Contact us to confirm current configuration availability.
SRX-12 Solar Generators
Twelve Panels. Zero Compromise.
Remote Monitoring + GPS
(Starlink Mini — included standard)
Rated Power: 8 kW continuous / 16.97 kW instantaneous
Outlets: 2 × 20A + 1 × 30A + 2 × 50A
+ Main Lug In/Out Bussing
